suitable for 10 Gigabit (10/100/1000/10000 Mbit) network

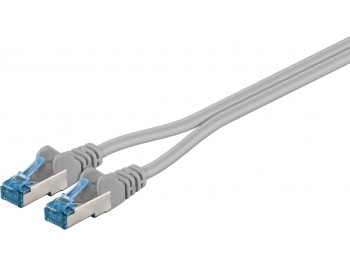

double shielded LAN/network cable to connect network components with 2 x RJ45 connectors
Cat 6(A) tested
with 3µ gold plated PINs
pairs screening: PIMF (pairs in metal foil) + outer shield: braiding
with length indication on the slimline strain relief
with latch protection
pair-sequence acc. to EIA/TIA 568B

Egenskaper

Technical Data

Cable
Shielding class S/FTP (PiMF)
Specification CAT 6a
height of cable sheath 6
width of cable sheath 12
Cable type round cable
Cable length 20 m
Inner conductor material CU (copper)
AWG 27/7 (stranded)
Number of shieldings 2 x
Type 1, shielding foil (alu) PiMF
Type 2, shielding braid (alu) overall shield
Kink protection both sides
LSZH compliant yes
Signal transmission
max. bandwidth 500 MHz
General
Color grey
Outer sheath material LSZH
