The ECOLAN® RJ45 plug provides a combination of excellent transmission quality and fast and easy tool-free assembly. IDC terminals and very low contact resistances assure high quality contacting for installation cables up to 9mm diameter and wire gauge from AWG22 - AWG27.

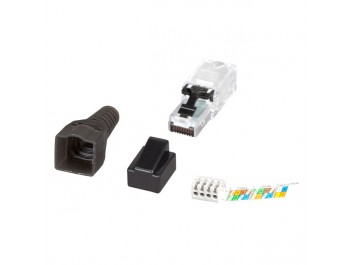

Unshielded polycarbonate body with separate dust cap and strain relief boot
Cat.6/Class E performance according to ISO/IEC11801 and IEC60603-7-4
Compact cable manager for AWG 22/1 .. AWG 26/1 or AWG22/7 .. AWG27/7
Pair management according to TIA 568A /B colour codes and industrial Profinet 1-2-3-6
Re-termination capability up to 5 times with the same width, for AWG27/7 up to 2 times.
Suitable for cable dia from 6,0mm .. 9,0mm
Strain relief with cable tie

Egenskaper

• Category:6
• Type of connector:RJ45 8(8)
• UTP Oskärmad
• Connection type:LSA
• AWG-range for solid core:22 – 27
• No Special tool necessary
• Suitable for round cable:True
• Suitable for litz wire conductor
• Suitable for solid core
