Sword-ISL
Sword Interconnect Cables

Framgången med Sword högtalarkablage väckte idén om ett signalkablage byggt på samma princip.

Konstruktionsmässigt fungerar Sword-kabeln som en korrekt signalförmedlare utan de bieffekter som en traditionellt konstruerad kabel ger. Sword-serien är svårslagen oavsett prisklass.

Finns i obalanserat (RCA, Sword-ISL) eller balanserat utförande (XLR, Sword-IXLR) Limited edition

Sword-ISL

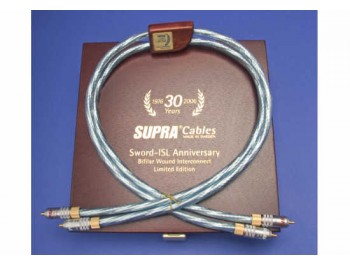

Our best analogue interconnect, Supra’s flagships. Sword–ISL is an interconnect pair with Supra RCA-8 anniversary plugs, made for analogue applications. Semi-balanced for best performance.

SUPRA Sword Interconnect - The High End
The success with the Sword loudspeaker cable woke-up the thoughts about an interconnect cable constructed in compliance with the same patented design. The cable works as a perfect signal carrier without the side effects of the traditionally designed cables. It is hard to beat the Sword series, regrdless of price. Available semi-balanced (RCA) and balanced (XLR)

What does it sound like?
Supra Sword passes the most complex music transients without any deformations. Signal delay is suddely the same at all musical frequencies. Therefore it vanishes, giving a clear 3-dimensional presence, a sure sign of the highest fidelity.

CombiCon Crimp
The Design.
The figure below illustrates the cable design. In each polarity there are twelve individually insulated strands forming two layers, the inner six spun with high pitch in one direction, the outer six in the opposite. This way of strand orientation, efficiently counteracts negative electrical interference giving all audible frequencies uniform transmission conditions and no open window for degrading noise to enter. The music will pass through sounding exactly the same. That is what distinguishes a really transparent cable.

Egenskaper

Mechanical Specifications

Cross Area: 1.5 / 15 mm2/AWG
No. Cond 2
Wires / Cond 6 + 6
Wiredia. Enameled OFC
Insulation: PE
Screen Coverage: Aluminium / Pet Foil, 100%
Jacket: PVC Crystal
Ext. Size: 8 (mm)


Electrical performance

Resistance 33 Ohm/km
C 0.14 (pF/m)
Phase Dislocation. 0.5-100kHz: 0.96 Deg.
Phase Error 0
